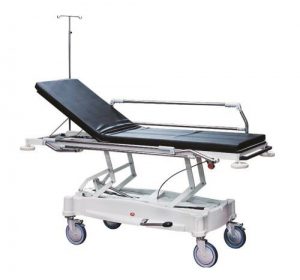

Description:
True Direction Steering (TDS): For improved stretcher control engage the True Direction Steering system. The steer caster located at the patient’s right foot end of the stretcher will lock once the steering pedal is applied.
Side rails: Full length, single release. Easy to wipe clean and disinfect and allows for easier patient transfer by creating a zero transfer gap. Rails feature a release latch centrally located on either side of the litter top under the patient surface.
Pneumatic Assist Fowler: Provides additional assistance for the safe and easy raising and lowering of the patient. Pneumatic assist fowler 400 N (90lb.) force.
Trendelenburg: A single pneumatic cylinder assists in placing the litter top in Trendelenburg/reverse Trendelenburg position.
Center Column Patient Support: Sturdy steel column design with five fixed litter top height position to choose from: 28″, 29″, 30″, 31″ or 32″.
Patient Lifts: The 5110 Series Stretcher has 5 7/8″ H of clearance between floor and cowling to easily accommodate and utilize patient lifts.
Non-hydraulic (Will require multiple staff to remove pins, raise or lower to desired height, and re-install pins. Please see item #5400N for hydraulic option.)
Brake & Steer activated foot pedals
Four corner IV pole receptacles
Four restraint strap positions
Full gray PVC perimeter bumper
Latex-free
Mattress is not included and must be purchased separately
