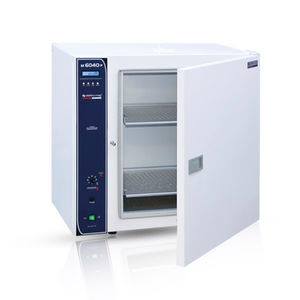

M 6040 P LABORATORY DRYING OVEN / BENCH-TOP / ANODIZED ALUMINUM

M 6040 P
Temperature working range Ambient temperature + 5 °C to 250 °C
Capacity (Chamber volume) 120 lt.
Type of thermoelement J type
Temperature control PID Digital control
Load switching element SSR (Solid State Relay)
Thermostat setting increments in 1 °C steps
Thermostat working accuracy ± 1 °C
Thermometer display increments in 1 °C steps
Chamber temperature accuracy ± 2 °C
Time range 1–9999 minutes
Timing begins When reached preset temperaturSafety measure
Safety thermostat with liquid expansion (50-300) °C
Casing material Sheet steel finished in stoved enamel paint
Chamber material Anodized aluminum
Insulation material Rock wool
Shelf 2 Perforated anodized aluminum
Fuse 10 Amps.
Power rating 1750 W
Power supply AC 220 V – 50/60 Hz
Chamber dimensions (w x h x d) 50 x 60 x 40 cm.
Overall dimensions (w x h x d) 79 x 79 x 53 cm.
Net weight 53 kg.
Gross weight 60 kg
